Boxer 100S

Variant Bannermob480X555

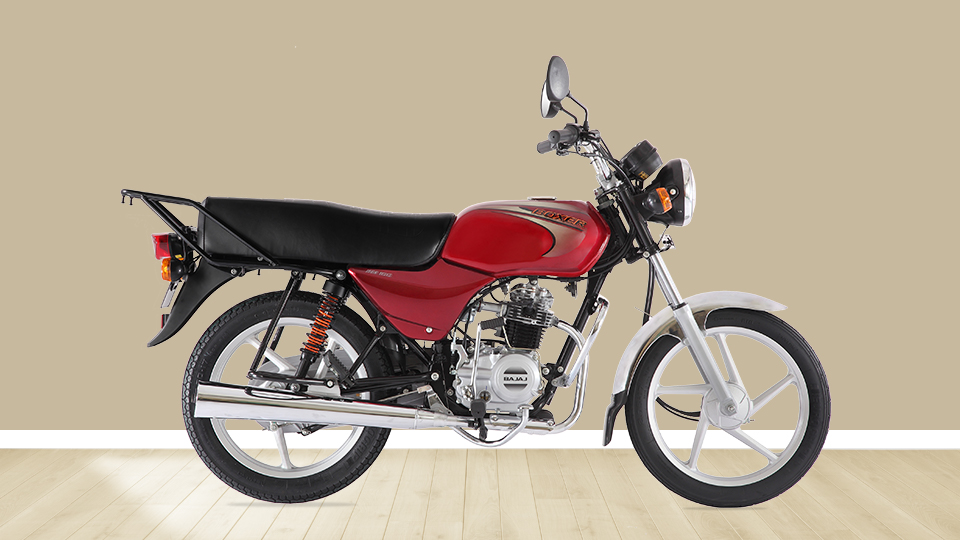

DURABILITY GUARANTEED

Durability guaranteed

Reliability day-after-day, with the muscle to conquer challenges and performance to cut across boundaries.

Performance at a Glance

0nm

MAX TORQUE

0cc

ENGINE CAPACITY

0ps

ENGINE OUTPUT

0L

FUEL TANK

0kgs

KERB WEIGHT

Click and Drag for 360 View

CHOOSE YOUR COLOUR:
Flame Red

Design and Styling

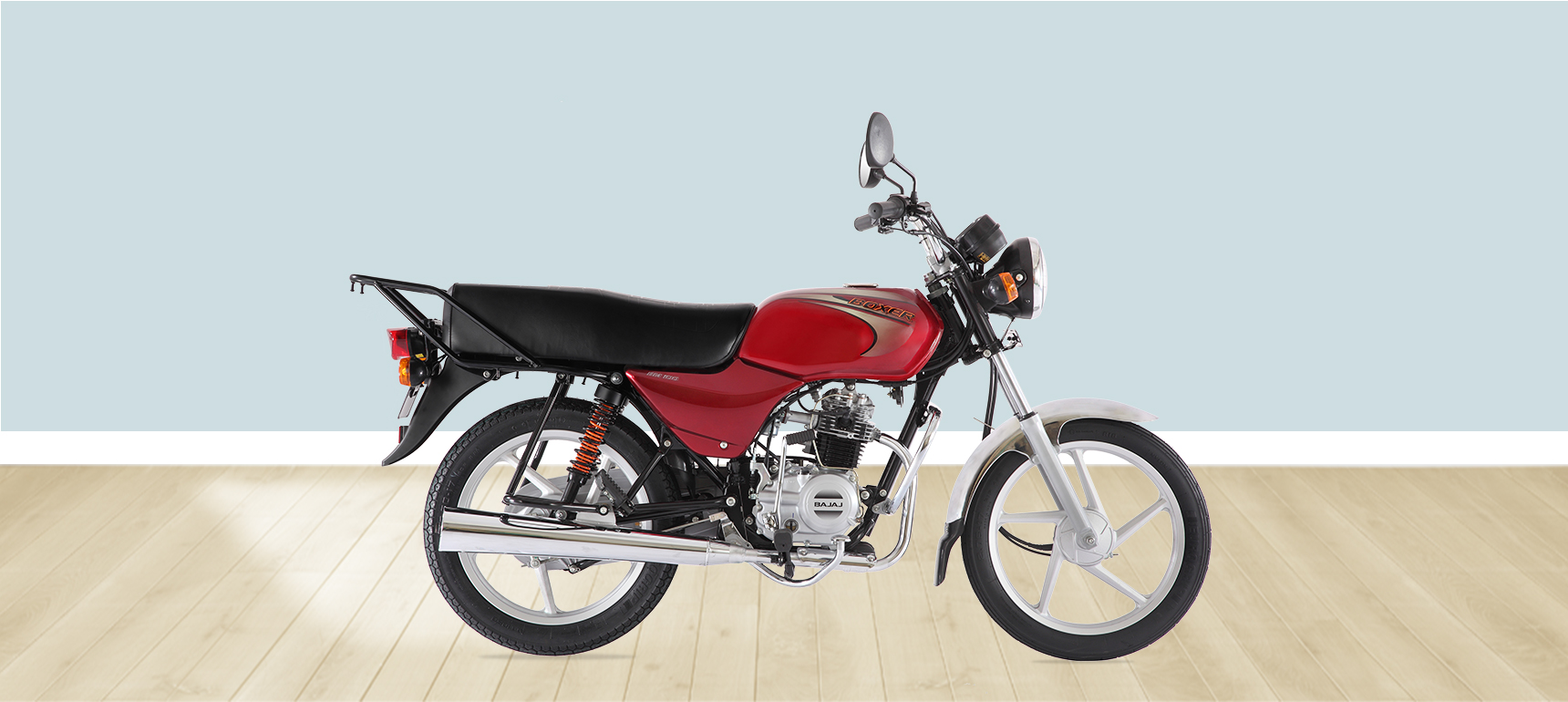

Design Style

Design and Styling

Combination of big fuel tank & round Head lamp for a muscular look

WHAT POWERS THE BOXER 100S

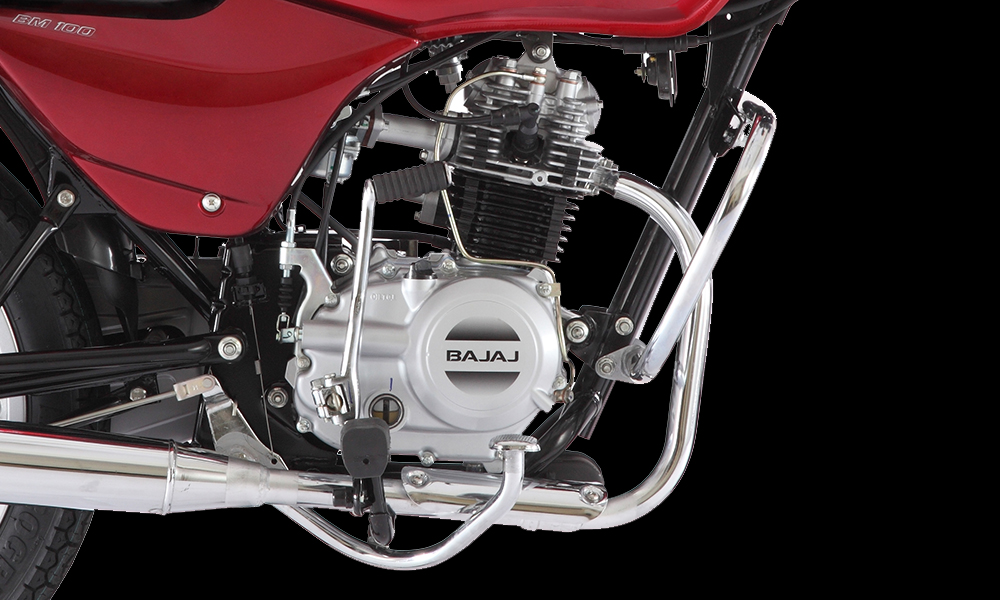

Engine 1000X600

4-Stroke Natural Air-Cooled Engine

Ride with the promise of best in class fuel efficiency and superior engine performance

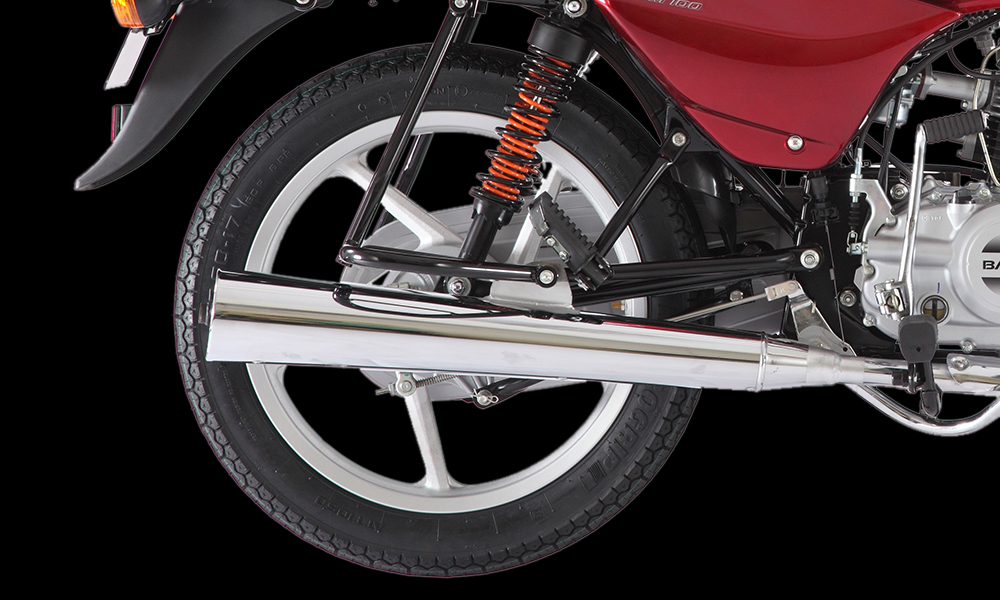

Exhaustnew 1000X600

ExhausTEC

Enhanced power at low speeds, for smoother rides on busy city streets.

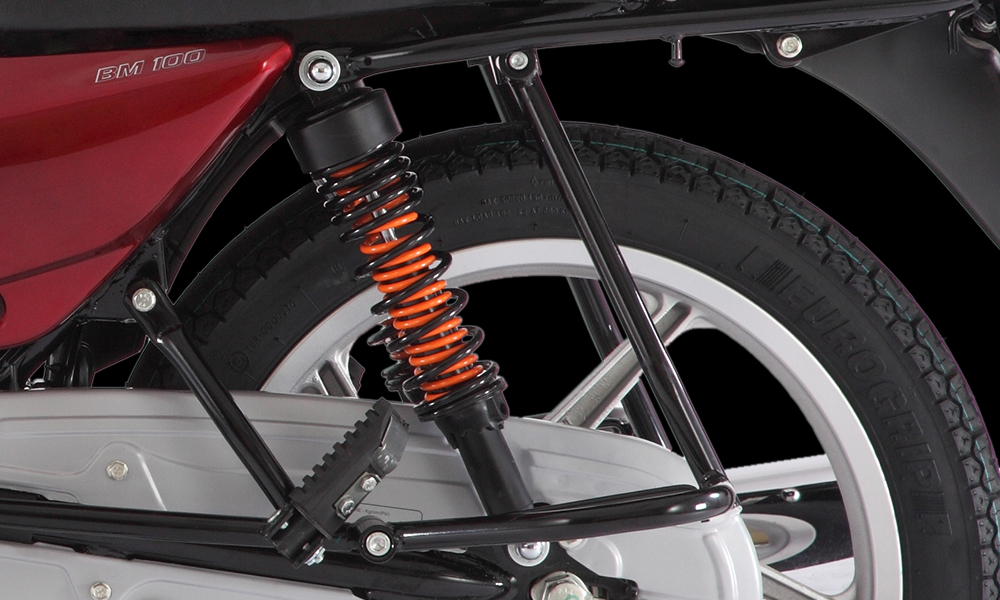

Rear-Suspension-New_1000X600

Rear Suspension

Long travel SNS type for heavy loads and rough terrain

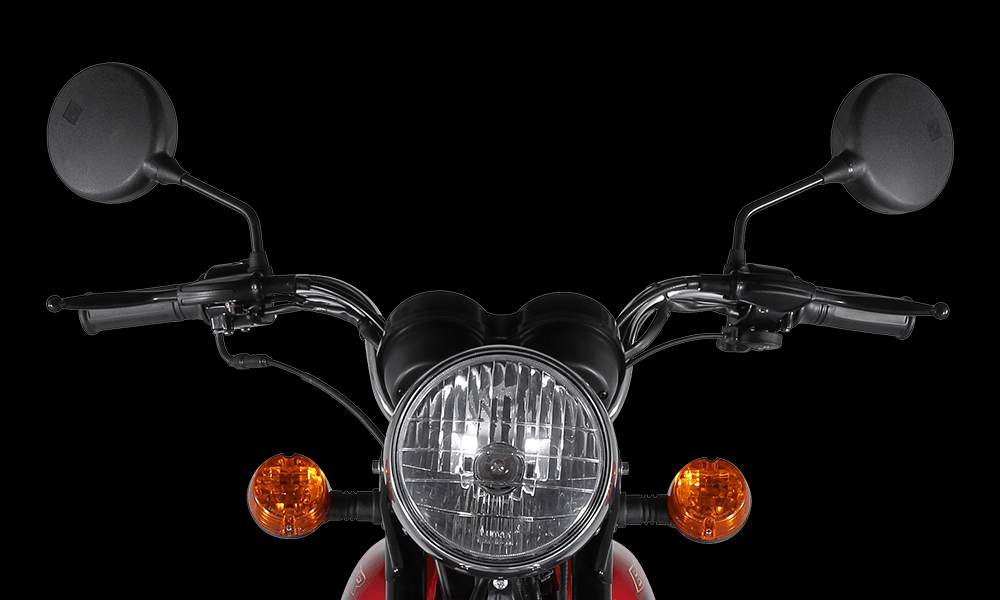

headlamp-1000x600

Striking 12V Headlamp

Striking 12V headlamp that lights up your route.

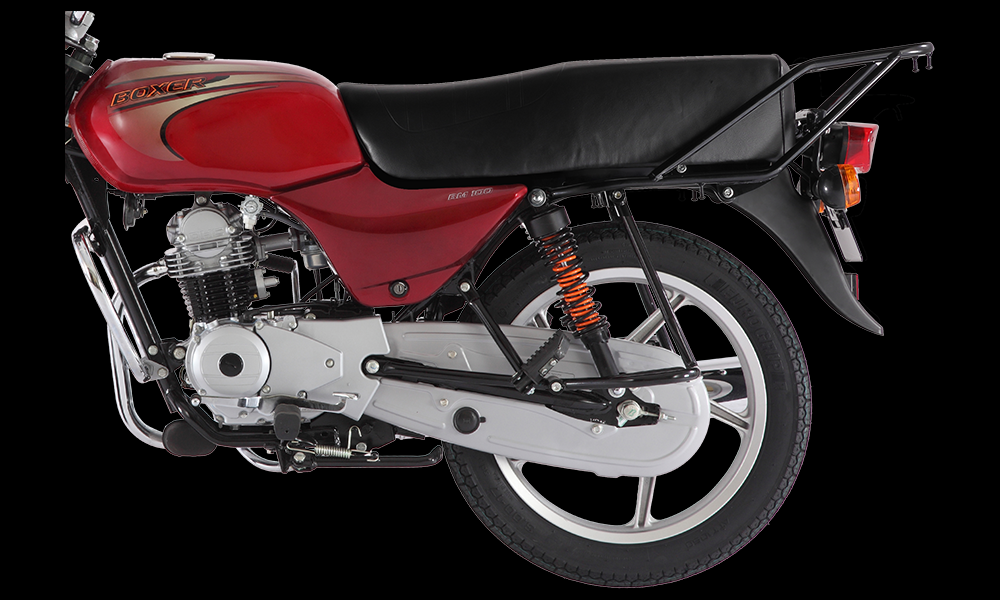

Grip Frame 1000X600

Grip frame

Good pillion seating comfort, higher load carrying capacity

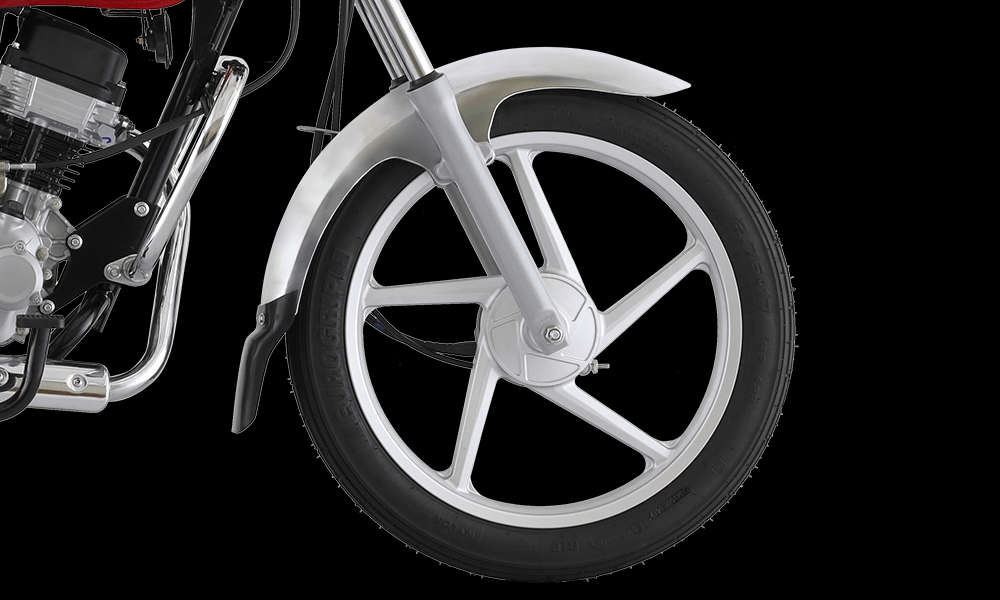

Alloy Wheels

Large 17” alloy wheels, coupled with a long wheel base for excellent stability on uneven paths.

THE COMPLETE SPECIFICATIONS

Engine

Type: 4 stroke Natural air cooled
Max Power: 8.2 Ps (6.03 kW) @ 7500rpm
Max Torque: 8.05 Nm @ 4500 rpm
Displacement: 99.27 cc
Starting:Kick start

Brakes & Tyres

Break Size Front: 110 mm
Brake Size Rear: 130 mm
Tyre Front: 2.75 X 17"
Tyre Rear: 3 X 17"
Brake Type Front: Mechanically Expanding Shoes, Drum
Brake Type Rear: Mechanically Expanding Shoes, Drum

VEHICLE

Wheel Base: 1235mm
Length x Width x Height: 1970 X 770 X 1065 mm
Suspension Front: Ceriani type, Telescopic, Stroke = 110mm
Kerb Weight: 109 Kg
Fuel Tank (Reserve / Usable): 9.3 L ( 1.2L Usable reserve)
Suspension Rear: Trailing arm with coaxial shock absorbers and coil springs

ELECTRICALS

System: 12 Volts AC + DC
Battery: 12V 2.5Ah
Head Lamps: 35/35W
